Description:

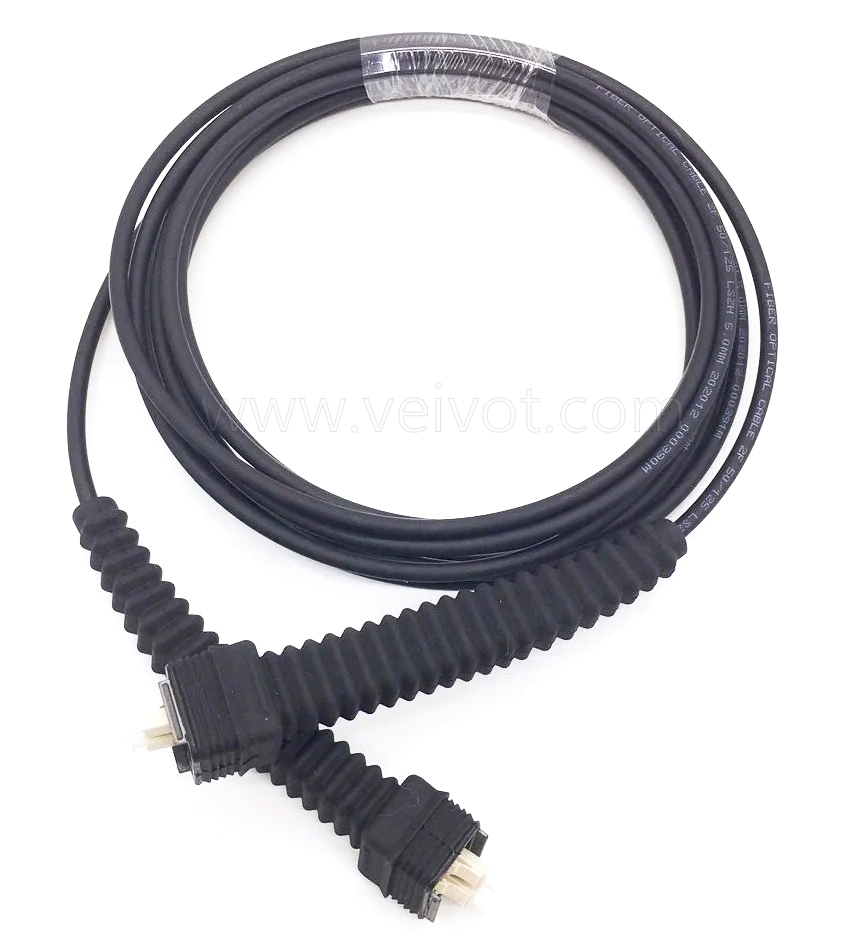

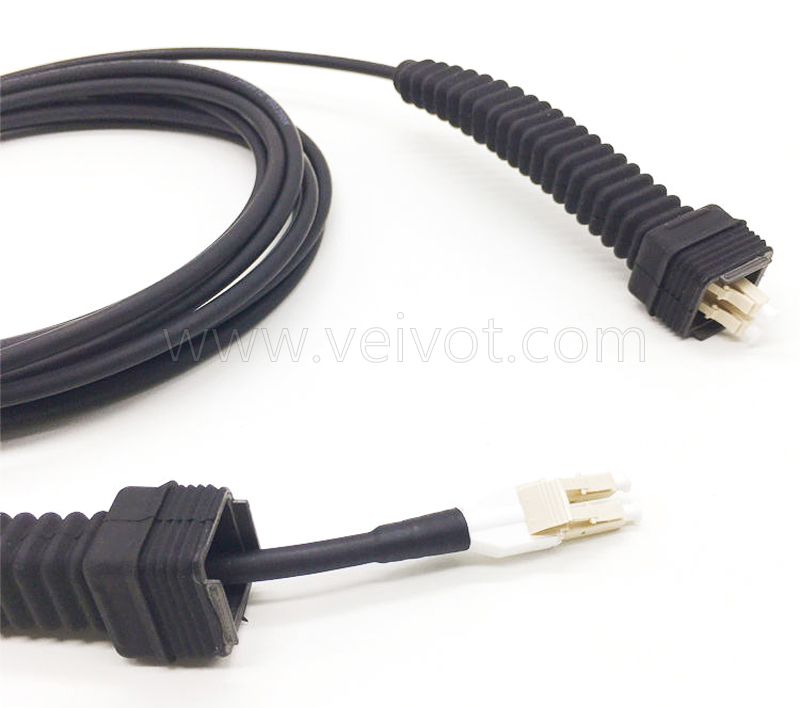

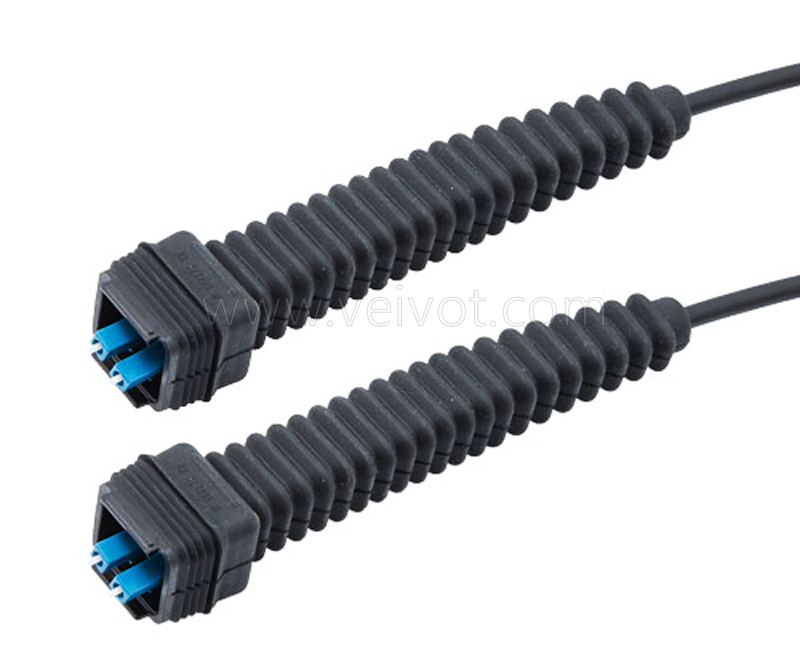

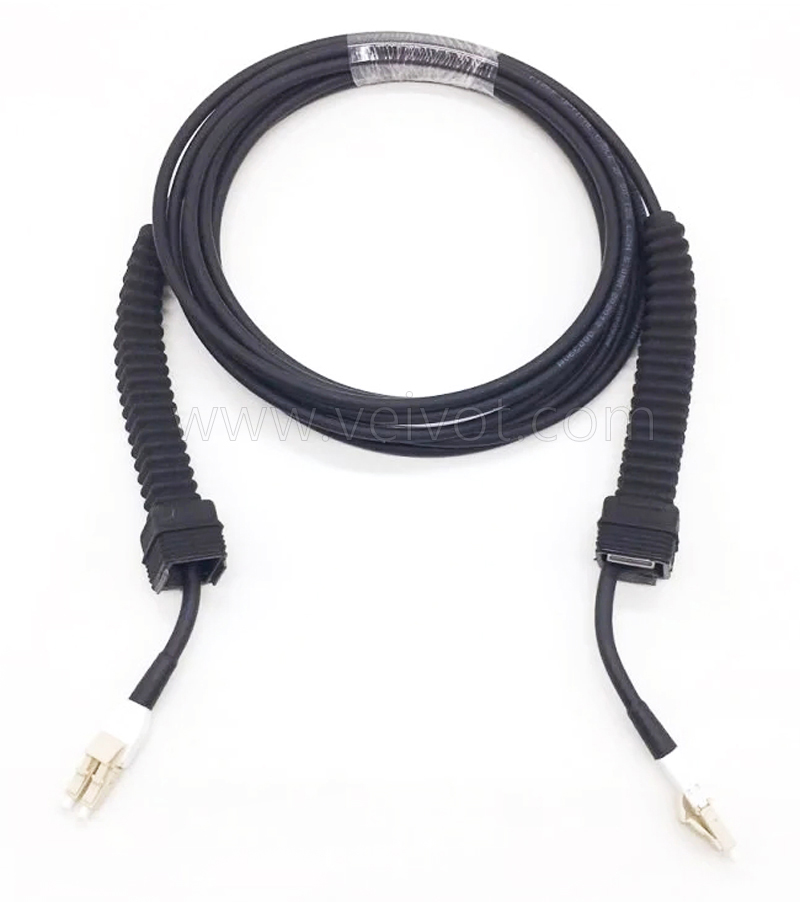

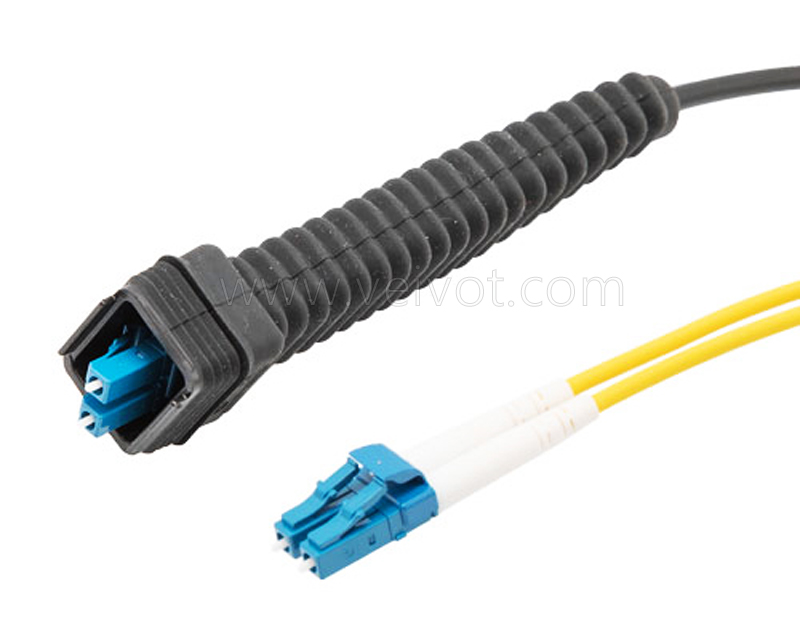

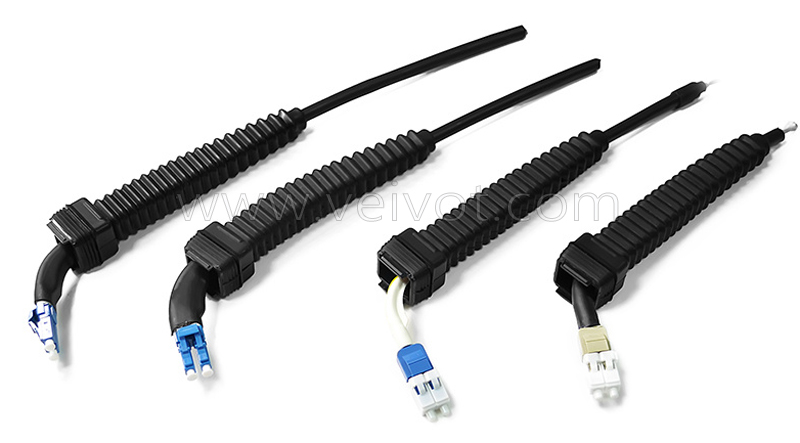

Veivo's NSN Boot CPRI fiber optic patch cables feature a flexible boot and are ideal for outdoor fiber applications. They meet the requirements of FTTA (Fiber to the Antenna) projects in outdoor environments. Compatible with Nokia waterproof connectors, they are suitable for the latest and next-generation mobile communication systems, particularly 3G, 4G, and 5G base stations (BBU to RRU).
Features:
Easily add/install jumper cables for a future expansion.
Low insertion loss and added loss.
Height of attenuation.
Flexibility with small bending radius and excellent cable routing properties.
End-face geometry and quality superior than IEC and Telcordia standards.
The material in the jumpel cable are all-weather and UV-resistant.
IP67 water and dust protection.
RoHS and REACH materials compliant.
Application:
Multi-purpose Outdoor.
For connection between distribution box and RRH.
Deployment in Remote Radio Head cell tower applications.
Technical Data:
Connector A | IEC 61754-20 | NSN LC Duplex or MSN LC Uniboot |
Connector B | IEC 61754-20 | NSN LC Duplex, MSN LC Uniboot, LC Duplex or LC Uniboot |
Cable Attenuation | @1310nm ≤ 0.4dB/km | |
Connector Insertion Loss | IEC 61300-3-34 | Typical value≤0. 15dB; Maximum≤0.3dB |
Connector Return Loss | IEC 61300-3-6 | SM UPC: ≥50dB SM APC: ≥60dB MM UPC: ≥30dB |
Cable Length | Customized | |
Cablle Outder Diameter | 4.8-7.0mm | |
Jacket Color | Black | |
Jacket Material | LSZH or TPU | |
Fiber Mode | Singlemode (G652D, G657A1, G657A2, G6573) Multimode (OM1, OM2, OM3, OM4, OM5) | |
Fiber Count | 1 | |
Operating Temperature | -20 ~ +70°C | |
Installation | Indoor / Outdoor | |
More details, please contact us sales@veivot.com.
