Description:

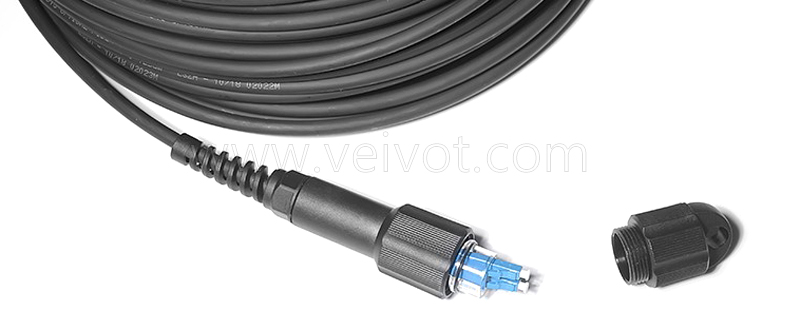

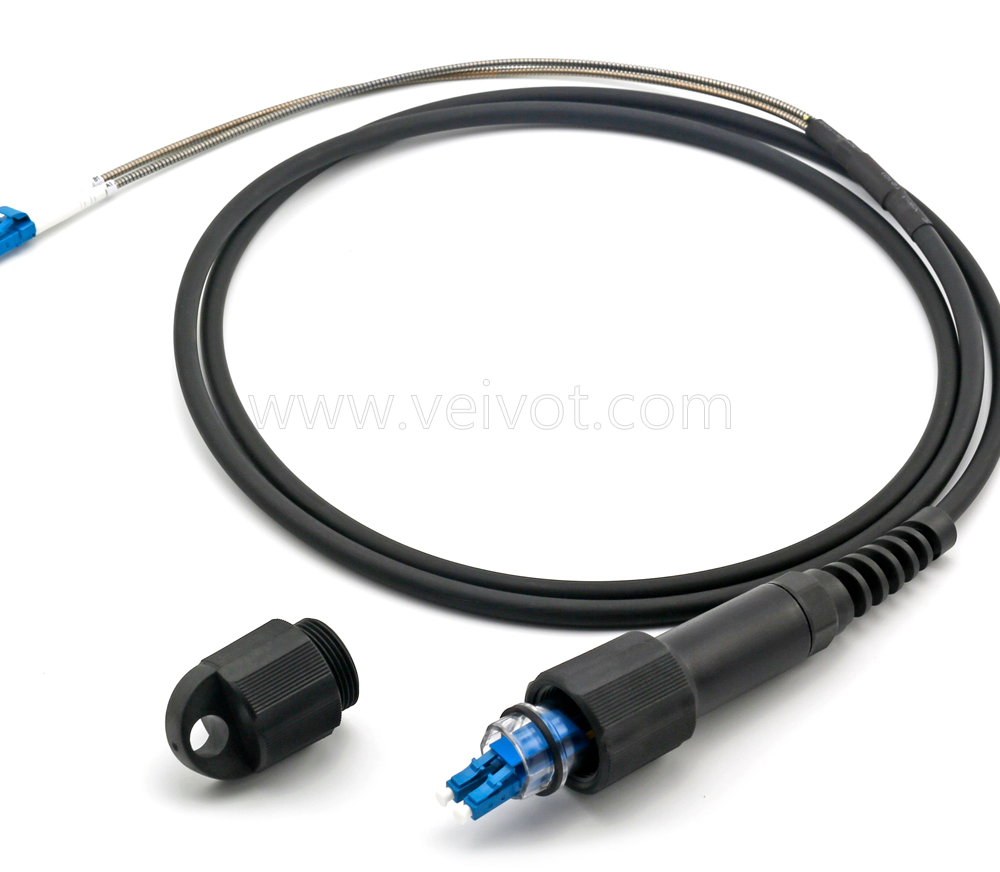

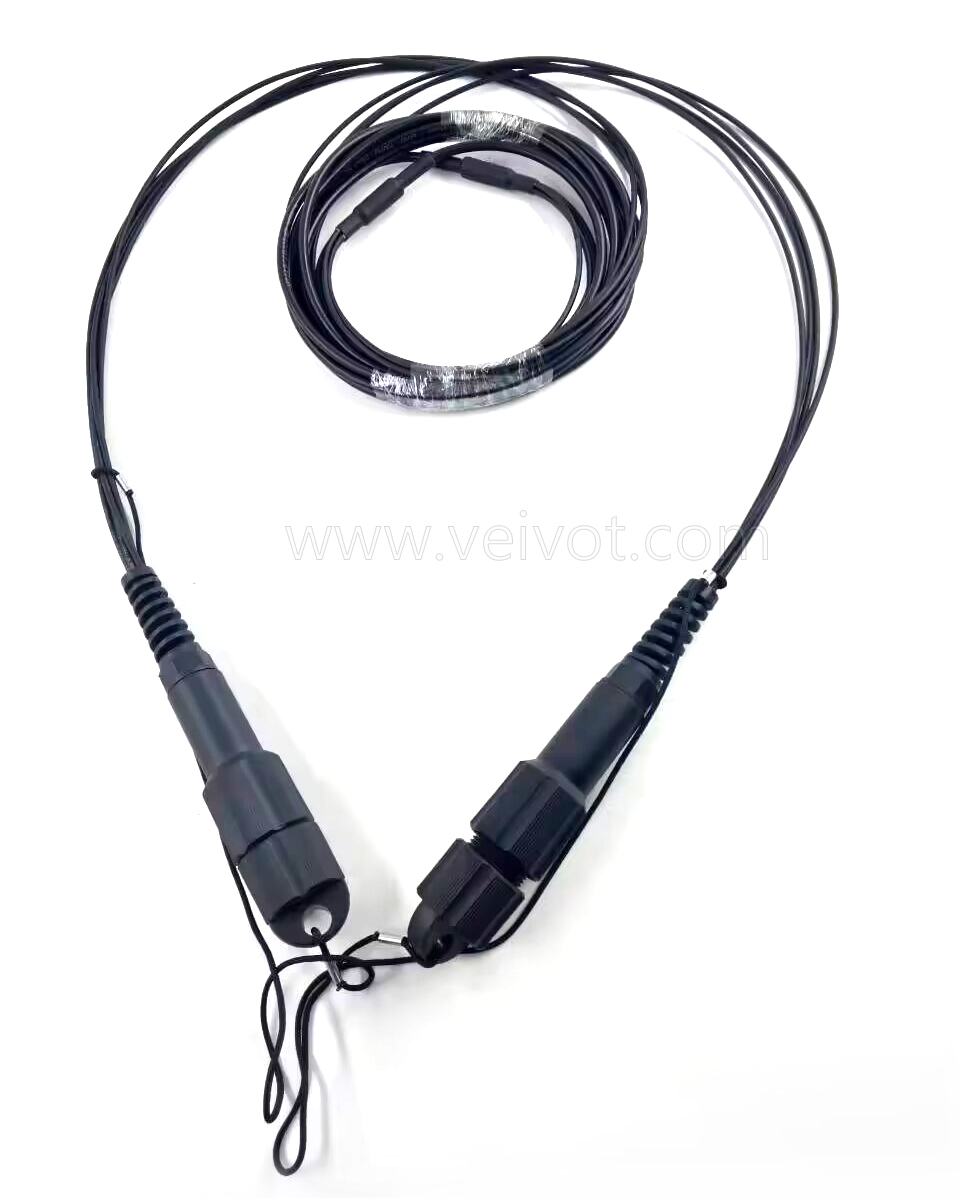

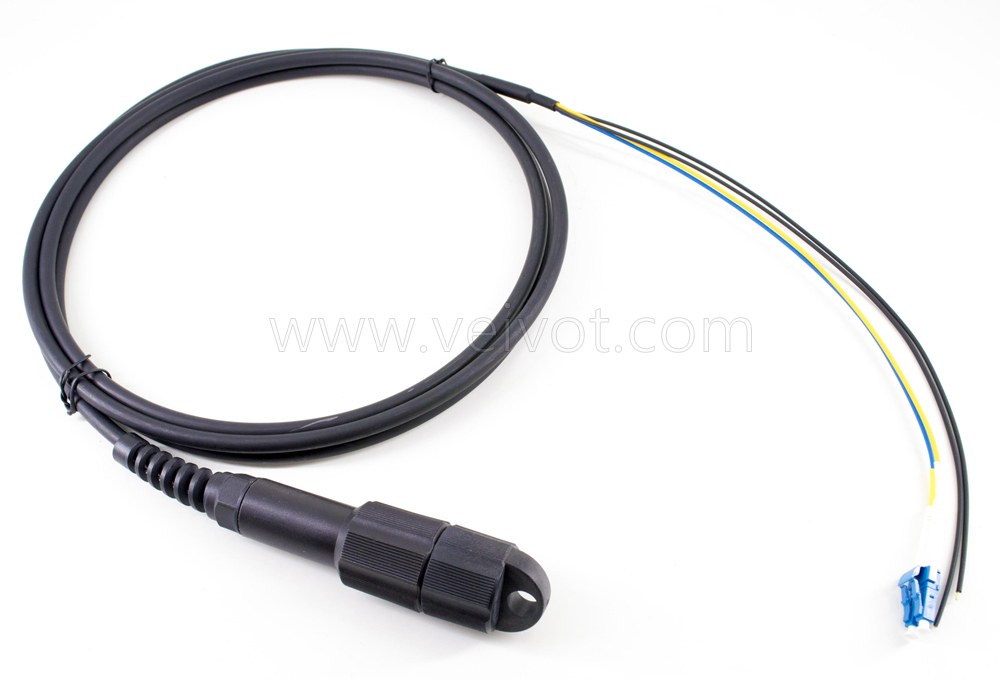

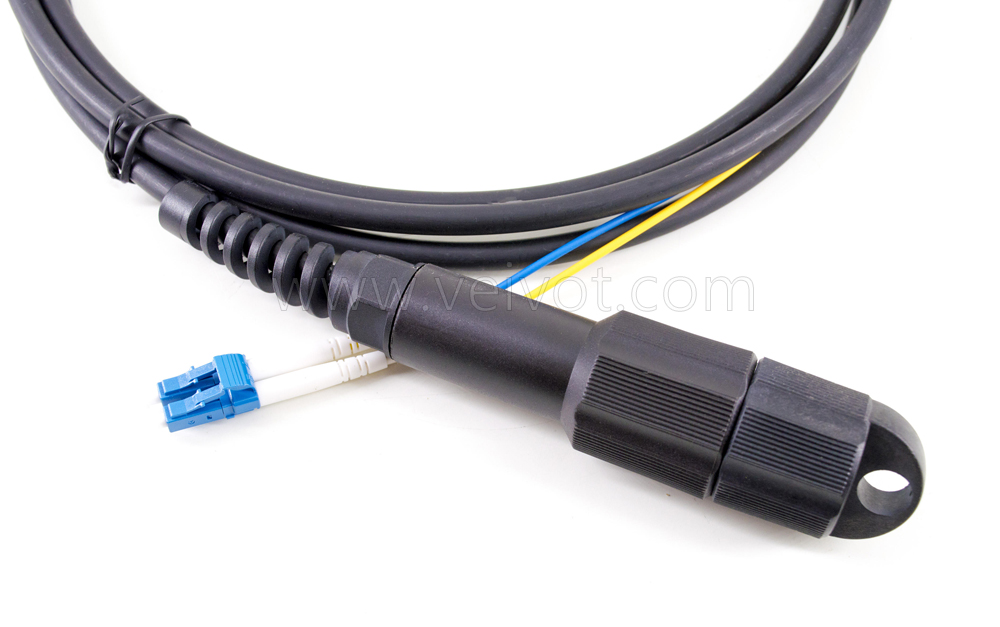

The Veivot’s PDLC connectors and the required optical cables have become standard interface applications for 4G, 5G and wireless base stations, such as remote wireless and fiber to antenna. This product is not only applicable to these fields, but also to industries, aerospace, national defense and other fields. The cables assembled with PDLC underwent salt spray tests. The waterproof rating reaches IP67. Easy to install and capable of transmitting reliable data over long distances in harsh environments.

Features:

• Standard DLC connector, well connected with standard LC adaptor .

• Flexibility with small bending radius and excellent cable routing properties.

• End-face geometry and quality superior than IEC and Telcordia standards.

• The material in the jumpel cable are all-weather and UV-resistant.

• IP68 water and dust protection

• Mechanical performance: IEC 61754-20 standard.

• RoHS and REACH materials compliant.

Application:

• Multi-purpose Outdoor.

• For connection between distribution box and RRH.

• Deployment in Remote Radio Head cell tower applications.

Technical Data:
