Description

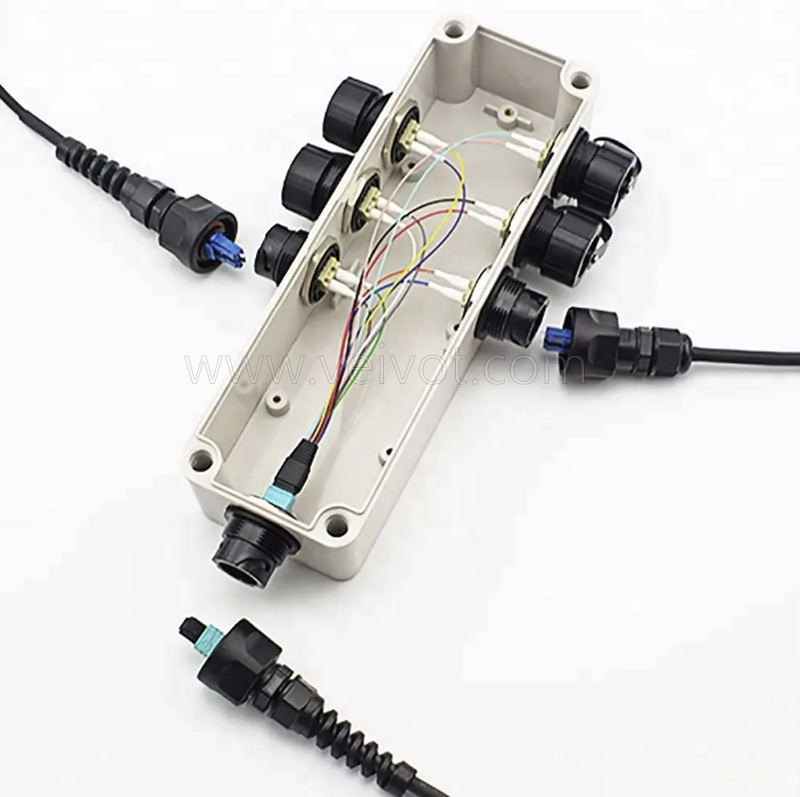

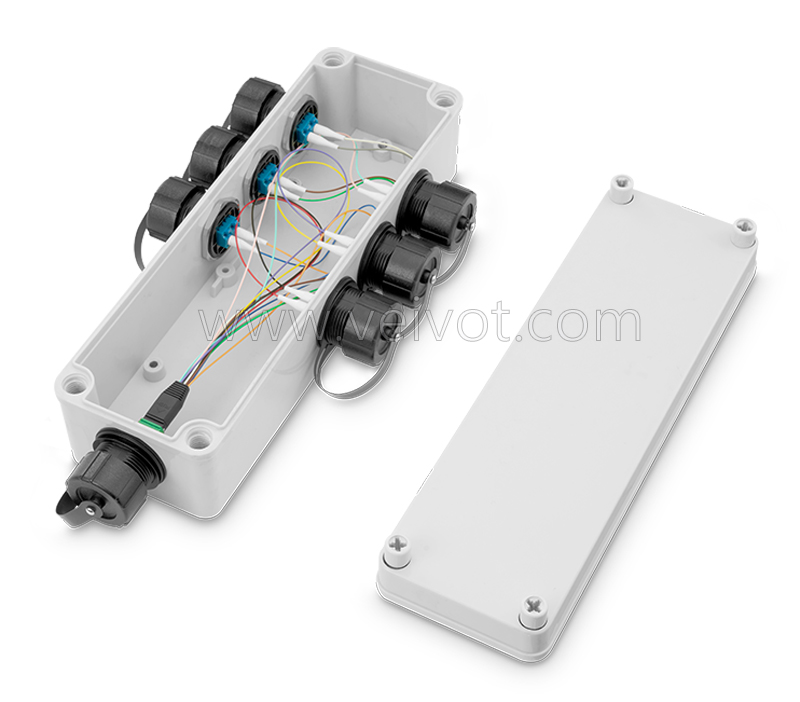

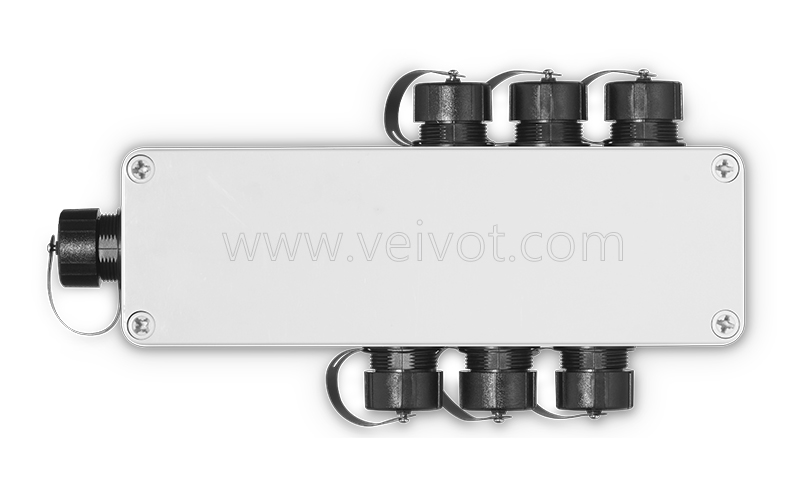

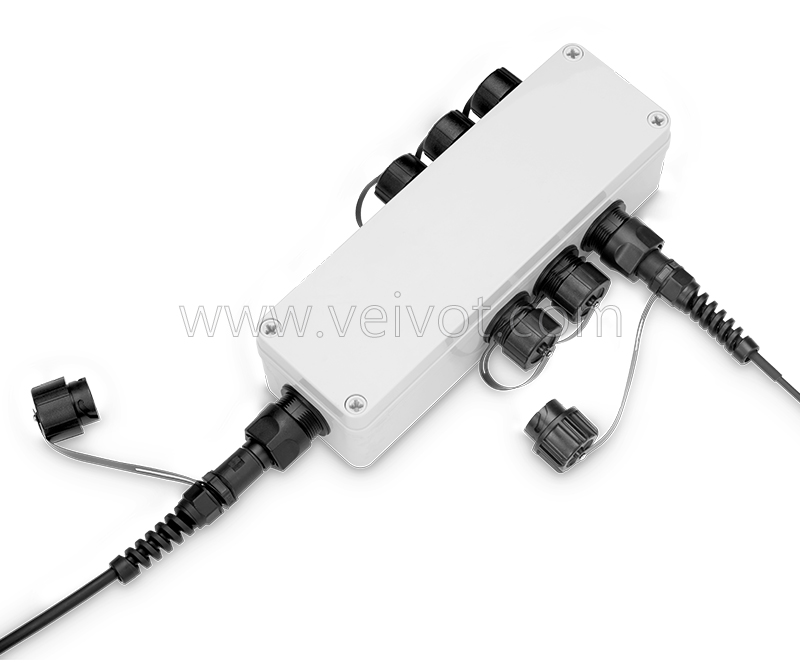

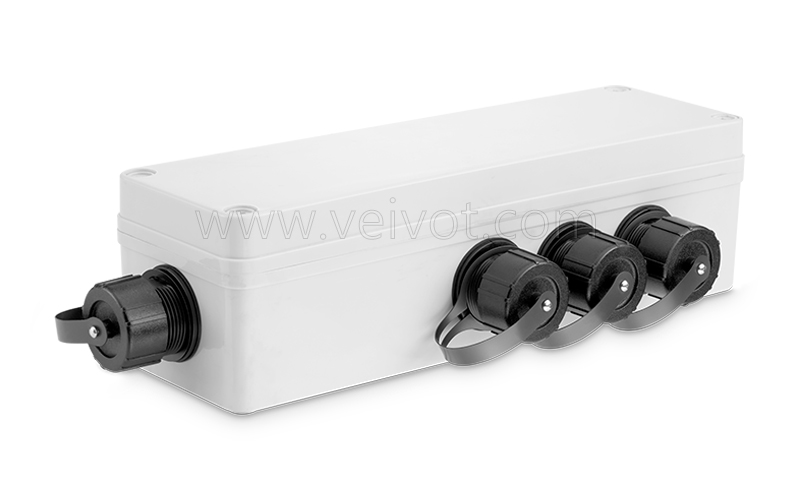

The ODVA Waterproof Mini Terminal Junction Box is a quick-connect sealing mechanical seal. It is a single-ended design and is generally used in cable distribution sections. In the FTTH scenario, it provides fast and reliable cable connection functions. It supports 6 quick-connect descending cables.
Features
Plug and play, Fast Connect drop cable instead of splicing, be installed without opening the closure.
Fast Plug realizes cable fastening and sealing outside the closure, leads to fast installation.

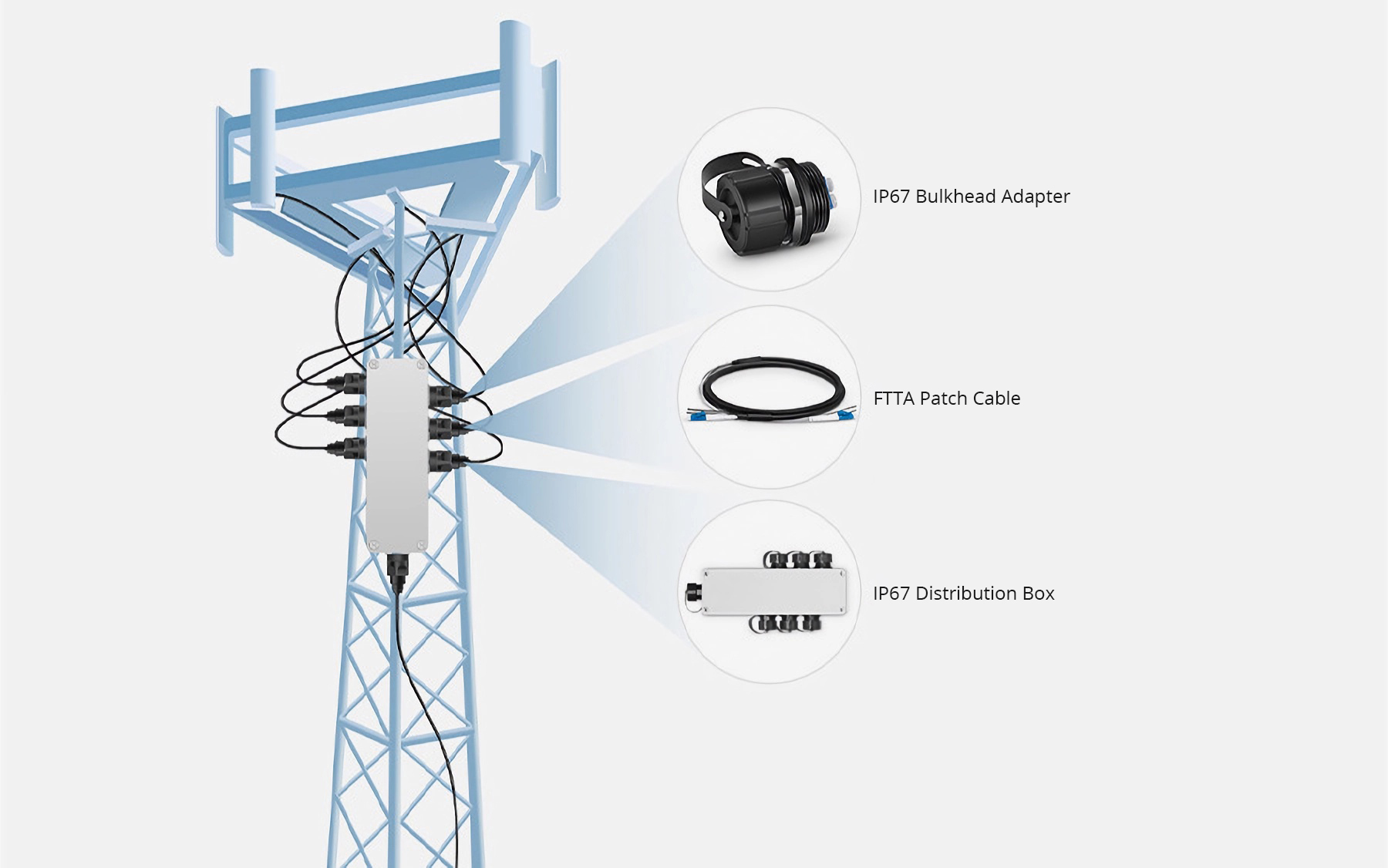

Support pole/wall mounting, aerial cable mounting.
Support over ground installation.
Small size and elegant appearance.
IP65 protection.
Specifications
Optical Cable inlet & outlet | 1x suitable for Φ5.0mm straight-through cable |

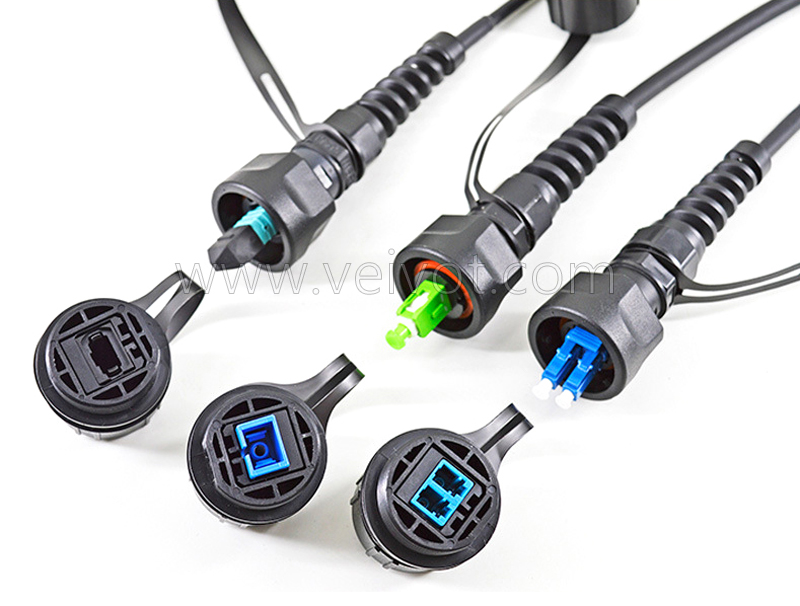

Adapter Type | LC Duplex or SC Simple Hardened adapters |
LC or SC Hardened Adapters Qantity | 6pcs |
Installation Mode | Pole/wall-mounting, aerial cable-mounting |
Application Scenario | Overground installation |
Dimensions | 250x70x80mm |
Net Weight | 0.4kg |
Shell Material | ABS |
Color | Light Grey |
Protection Rating | IP65 |
RoHS | Compliant |
Sealing Mode | Mechanical |
Operating Temperature | -40ºC to +65ºC |
Storage Temperature | -40ºC to +70ºC |
Relative Humidity | ≤93% |
Adapter Insertion Loss | ≤0.25dB |
Reseating Durability | >500 times |
Order Informaton
Product | Input Adapter | Output Adapter | Fiber Type | Breakout Cable Type |
ODVA Waterproof Box | MPO(key up-down) | Duplex LC | SM G657A1 | 12F MPO(Male) Elite to 12LC/UPC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Duplex LC | SM G657A1 | 12F MPO(Male) Elite to 12LC/APC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Duplex LC | MM OM3/150 | 12F MPO(Male) Elite to 12LC/UPC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Duplex LC | MM OM3/300 | 12F MPO(Male) Elite to 12LC/UPC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Duplex LC | MM OM4 | 12F MPO(Male) Elite to 12LC/UPC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Simplex SC | SM G657A1 | 12F MPO(Male) Elite to 12SC/UPC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Simplex SC | SM G657A1 | 12F MPO(Male) Elite to 12SC/APC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Simplex SC | MM OM3/150 | 12F MPO(Male) Elite to 12SC/UPC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Simplex SC | MM OM3/300 | 12F MPO(Male) Elite to 12SC/UPC 0.9mm Harness Cable |
ODVA Waterproof Box | MPO(key up-down) | Simplex SC | MM OM4 | 12F MPO(Male) Elite to 12SC/UPC 0.9mm Harness Cable |
