Description:
Optical fiber diagram module uses optical fiber as the transmission medium, the transmission speed is fast, the stability is strong, can meet the needs of big data transmission, is not affected by electromagnetic interference, prevent eavesdropping and eavesdropping, can support up to 30km of wired signal transmission.
Characteristics:
Material: ABS (black) - strong and lightweight
Custom size: Flexible options
Connector compatibility: FC, ST, SC, LC
Optical fiber bracket: G657A2, 0.27-0.4mm
Easy handling: Smooth cable deployment for any application
Parameter：

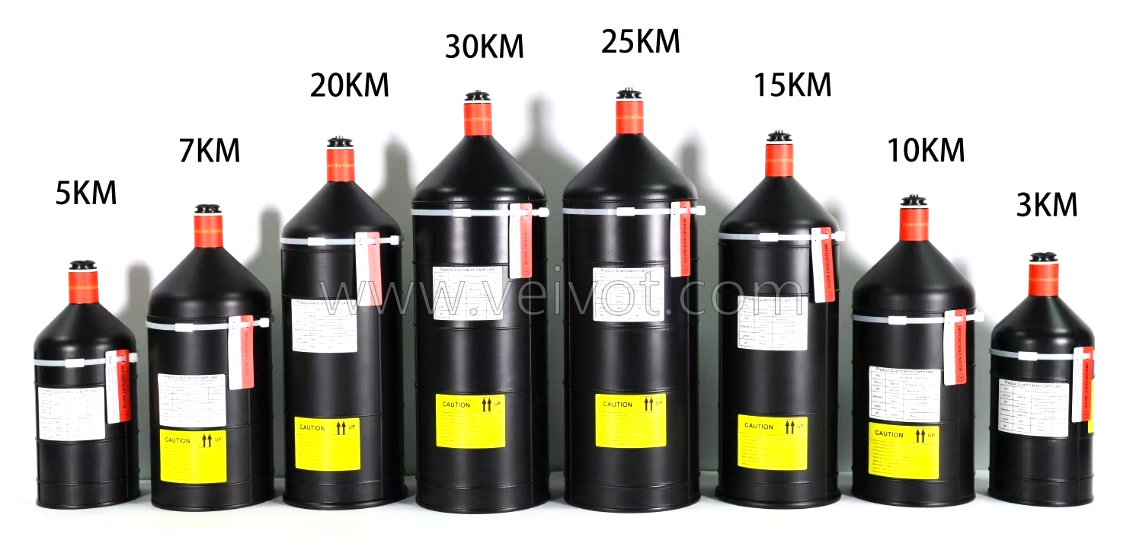

Product Name | FPV Drone Optical Fiber Kit | Fiber Length | 5/10/15/20/30 km |
Fiber Type | G657A2 | Weight | 80g/km |
Fiber OD | 0.27mm±0.1 | Operating Temperature | -40~+85 ℃ |
Outer Sheath | Natural (transparent) Resin | ||
Connector Type | Optional SC/LC/FC/ST | ||
Optical Fiber Parameter | |||
1310nm | 1550 nm | ||
Insertion Loss | ≤0.35 dB/km | ≤0.25 dB/km | |
WT | 0.329 dB/km | 0.185 dB/km | |

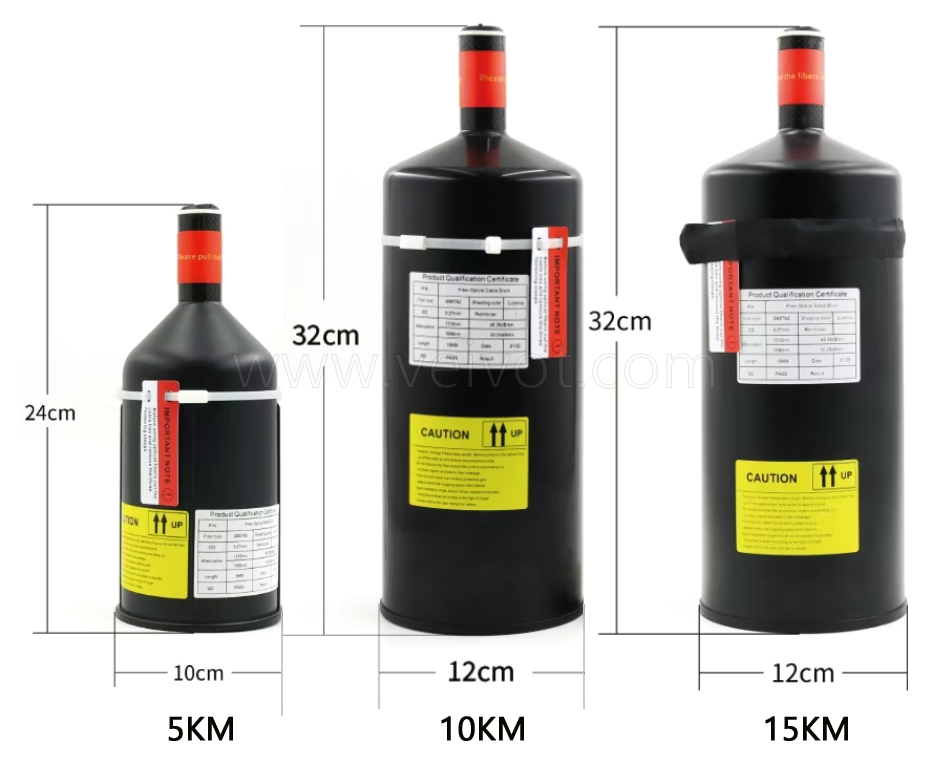

Canister Specification | |||
Materials | Dimension | Empty Weight | |
ABS (Black) - Strong and lightweight | 10*24 cm | 110G | |
12*32 cm | 160G | ||
14*36 cm | 200G | ||
Fiber with drum Only , No sky & Ground Module and Video data Adapter (No Accessories):

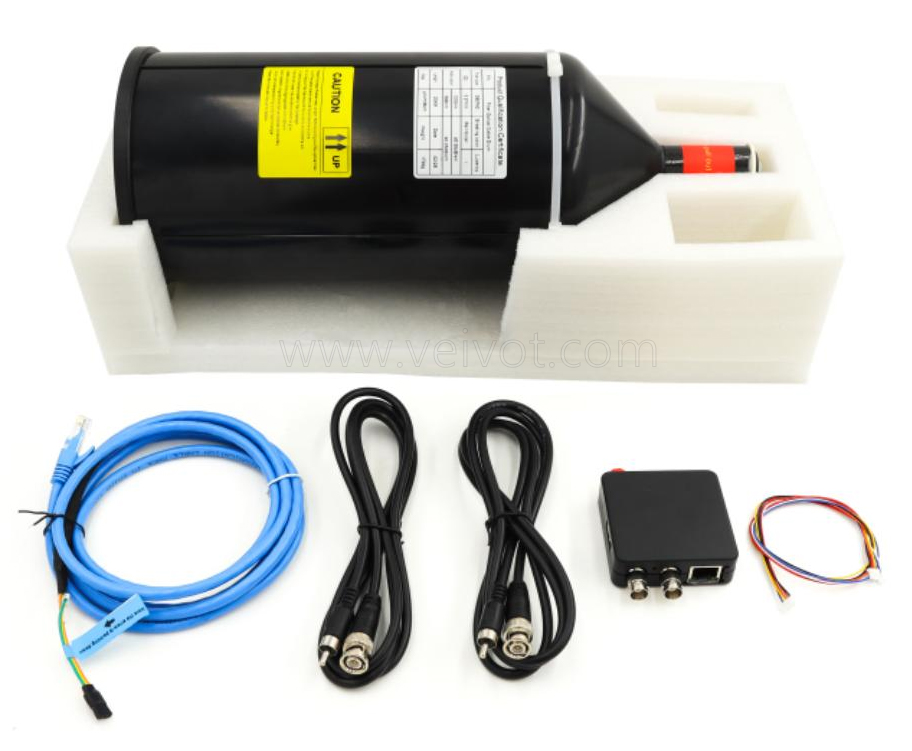

Fiber with Sky & Ground Module Accessories:

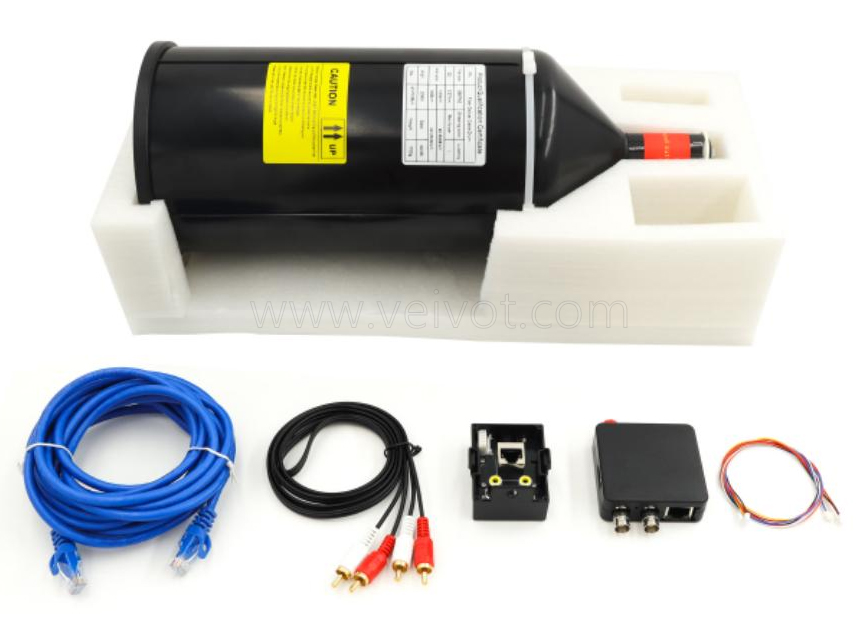

Fiber with Sky & Ground Module & Video Data Adapter Accessories:
