Description

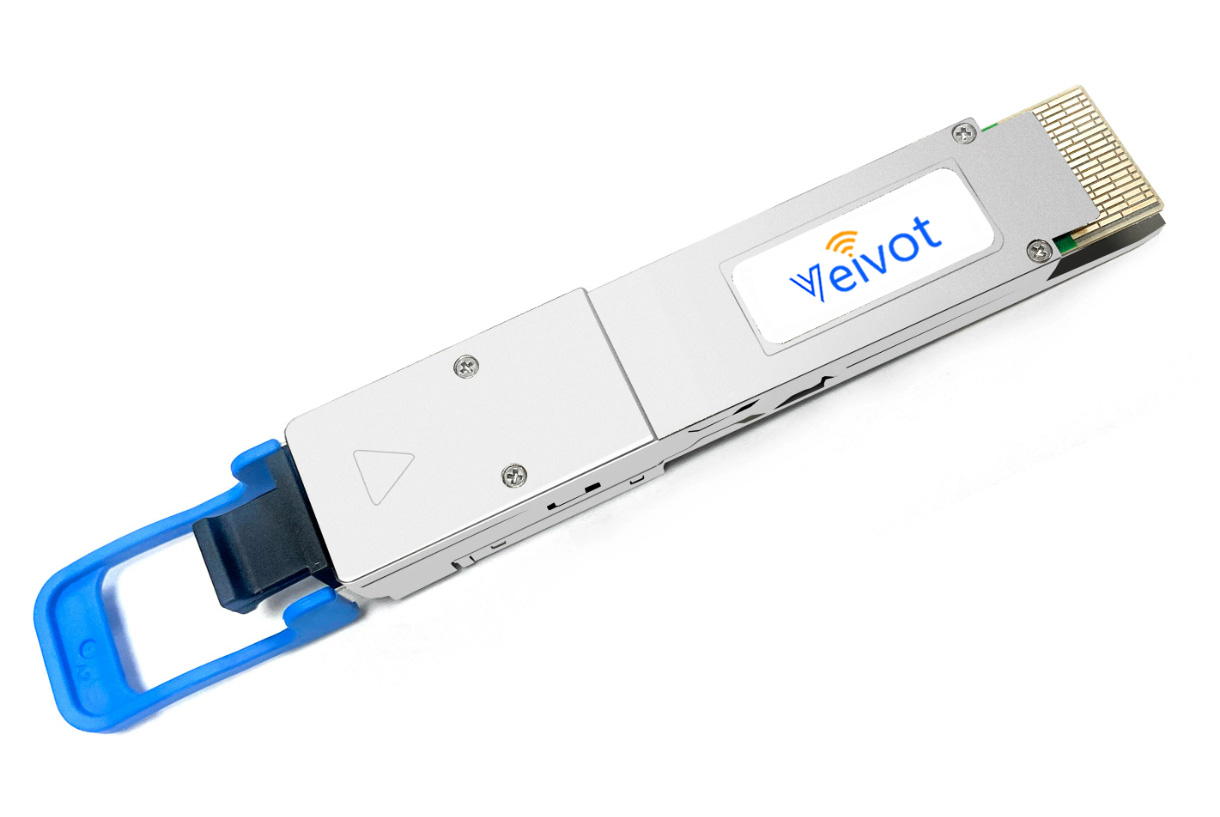

The 400GBASE-DR4 QSFP-DD is a 400Gb/s four-channel small form-factor pluggable double-density (QSFP-DD) optical module that enables link connections up to 500 meters over single-mode fiber (SMF) with MTP/MPO connectors. It complies with the QSFP-DD MSA and IEEE 802.3bs standards. The 400GBASE DR4 module converts eight 50Gb/s (PAM4) electrical signals into four parallel optical signals, each at a rate of 100Gb/s, for a total data rate of 400Gb/s. It uses an MPO 12-fiber connector to transmit four parallel 100G channels and utilizes 1310nm EML lasers. It supports 4x100G breakout connections to QSFP28 100G-DR transceivers. This transceiver has been tested and confirmed compatible with 400G QSFP-DD Ethernet switches from companies such as Arista, Cisco, Juniper, and Edge-Core. This transceiver is compatible with any third-party equipment that conforms to the MSA open slot standard.
Features
Compliant with IEEE802.3bs standard:- 400GAUI-8 electrical interface
Compliant with IEEE802.3bs standard:- 400GBASE-DR4 optical interface
Compliant with QSFP-DD MSA HW Rev 5.1: Type 2 housing with MPO-12 connector
Compliant with QSFP-DD CMIS Rev 5.0
Supports 3dB channel insertion loss
Maximum power consumption 9W
Case operating temperature 0°C to 70°C
Two wire serial Interface with digital diagnostic monitoring
Complies with EU Directive 2011/65/EU (RoHS compliant)
Class 1 Laser
Applications
400GBase-FR4 Ethernet
Switches and Routers
Data centers Interconnect
Optical Specifications
Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
Wavelength | λC2 | 1304.5 | 1311 | 1317.5 | nm | |
Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | |
Average Launch Power, each lane | AOPL | -2.9 | - | 4 | dBm | 1 |
Outer Optical Modulation Amplitude (OMAouter), each lane | TOMA | -0.8 | - | 4.2 | dBm | 2 |
Launch Power in OMAouter minus TDECQ for ER ≥4.5dB, each lane | TOMA-TDECQ | -2.2 | - | - | dBm | |
Transmitter and Dispersion Eye Closure for PAM4 (TDECQ), each lane | TDECQ | - | - | 3.4 | dB | |
TDECQ – 10*log10(Ceq), each lane | - | - | 3.4 | dB | ||
Average Launch Power of OFF Transmitter, each lane | TOFF | - | - | -15 | dBm | |
Extinction Ratio, each lane | ER | 3.5 | - | - | dB | |
Transmitter transition time | TT | - | - | 17 | ps | |
RIN17.1OMA | RIN | - | - | -136 | dB/Hz | |
Optical Return Loss Tolerance | ORL | - | - | 21.4 | dB | |
Transmitter Reflectance | TR | - | - | -26 | dB |
Note 1: Average launch power, each lane (min) is informative and not the principal indicator of signal strength.
Note 2: Even if TDECQ < 1.4dB, OMAouter (min) must exceed this value
Note 3: Transmitter reflectance is defined looking into the transmitter.
Receiver Optical Specifications
Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
Wavelength | λC2 | 1304.5 | 1311 | 1317.5 | nm | |
Damage Threshold, each lane | AOPD | 5 | - | - | dBm | |
Average Receive Power, each lane | AOPR | -5.9 | - | 4 | dBm | 1 |
Receive Power (OMAouter), each lane | OMAR | - | - | 4.2 | dBm | |
Receiver Reflectance | RR | - | - | -26 | dB | |
Receiver Sensitivity (OMAouter), each lane | SOMA | -4.4 | dBm | 2 | ||
- | - | |||||
Stressed Receiver Sensitivity (OMAouter), each lane | SRS | - | - | -1.9 | dBm | 3 |
Conditions of stressed receiver sensitivity test | ||||||
Stressed eye closure for PAM4 (SECQ) | - | - | 3.4 | - | dB | |
SECQ – 10*log10(Ceq), lane under test (max) | - | - | 3.4 | dBm | ||
OMAouter of each aggressor lane | 4.2 |
Note 1: Average receive power, each lane (min) is informative and not the principal indicator of signal strength.
Note 2: Receiver sensitivity (OMAouter), each lane (max) is informative and is defined for a transmitter with a value of SECQ up to 3.4 dB.
Note 3: Measured with conformance test signal at TP3 for the BER = 2.4x10-4
Ordering Information
Part No. | Application | Data Rate | Laser Source | Fiber Type |
VV-QDD-DR4 | 400GBASE-DR4 | 400GB Ethernet | EML | Single Mode Fiber |
